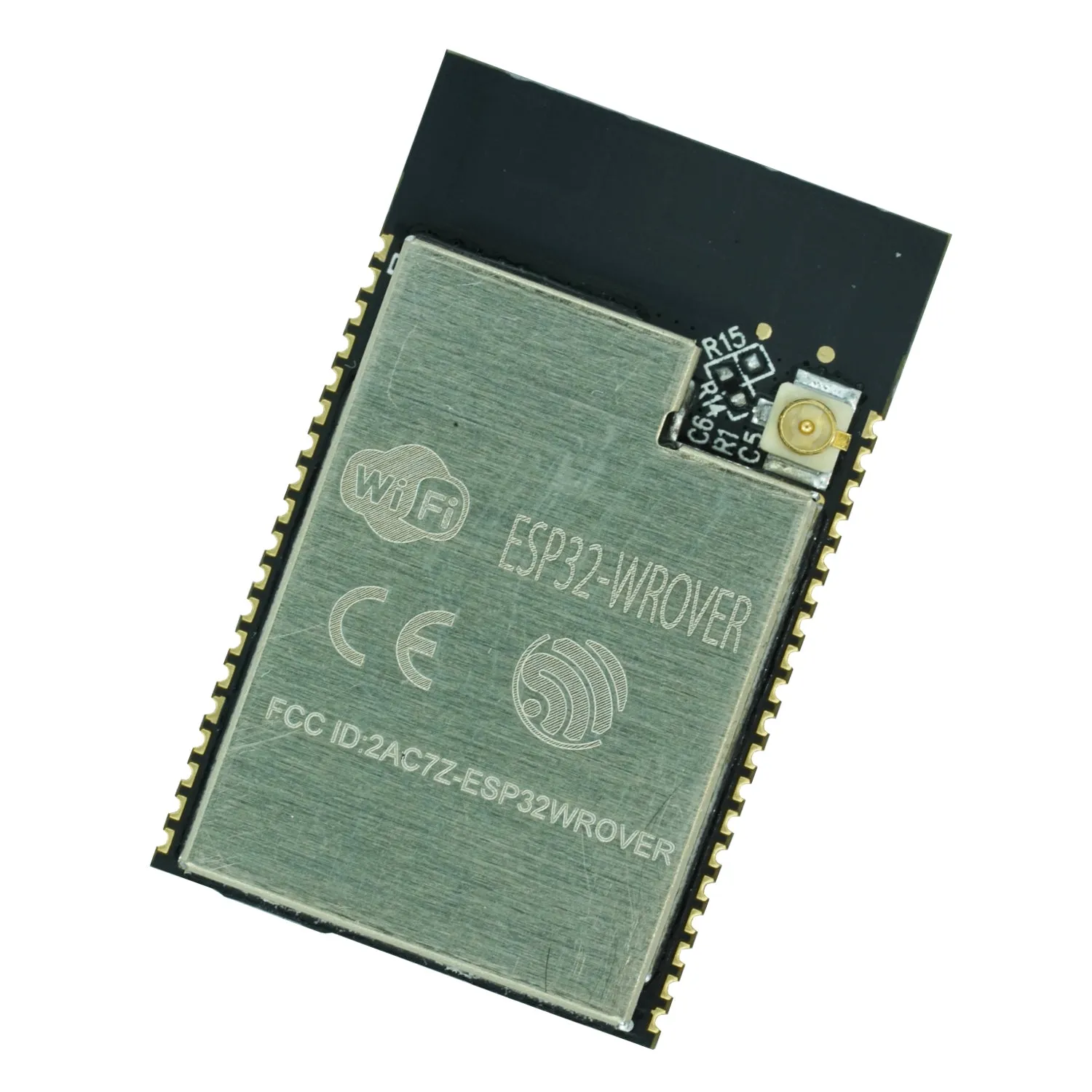

The ESP-WROVER-32-EXT module supports Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) connections making it suitable for a variety of wireless applications. Designed around the chip it features an external U.FL (IPEX) connector and 4 MB Pseudo Static RAM (PSRAM).
The WROVER-32 runs on freeRTOS operating system with LwIP and a built-in TLS 1.2 with hardware acceleration. With the secure encrypted over-the-air (OTA) updates, firmware can be easily updated remotely without manual or physical intervention. The module supports open-source system allowing the device to be completely customized. Example code and information can be found at .
The device has two (2) individually controlled CPU cores with a clock frequency that is adjustable from 80 MHz to 240 MHz. The ESP32 also has a sleep mode processor that allows for sleep current of less than 5 µA, making it suitable for battery powered applications. The WROVER-32 module also offers an easy process to gather sensor data or communicate with another microcontroller using a variety of peripherals, such as:
- Capacitive touch sensors
- UART
- Hall sensors
- I²S
- I²C
- High-speed SPI
- SD card interface
- Ethernet
Common applications include:
- Internet of Things (IoT) solutions
- Home automation
- Wearable electronics
- MP3 decoding
- Sensor networks
- Voice encoding
- Music streaming
Order Summary
SKU |
Flash Memory |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-ESP32-WROVER-I-N8R8 | 8 MB | ESP32-WROVER-I-N8R8 |
| GC-ESP-WROVER-32-16M-EXT Speicial Order: Call to purchase |
16 MB | ESP32-WROVER-I (16MB) |
